IP54 Six Axis Robot Arm , 200 Watts Aluminum Robot Arm Harmonic Drive

Brand Name : bcx

Model Number : bcx—00001

Certification : ce

Place of Origin : China

MOQ : 1

Price : 1500US dollars

Payment Terms : T/T

Supply Ability : 99

Delivery Time : 8

Packaging Details : specialized shatterproof packing

Product name : Six Axis Robot Arm

Model : bcx—00001

Brand : bcx

Power : 200 watts

Protection : IP54

Contact Now

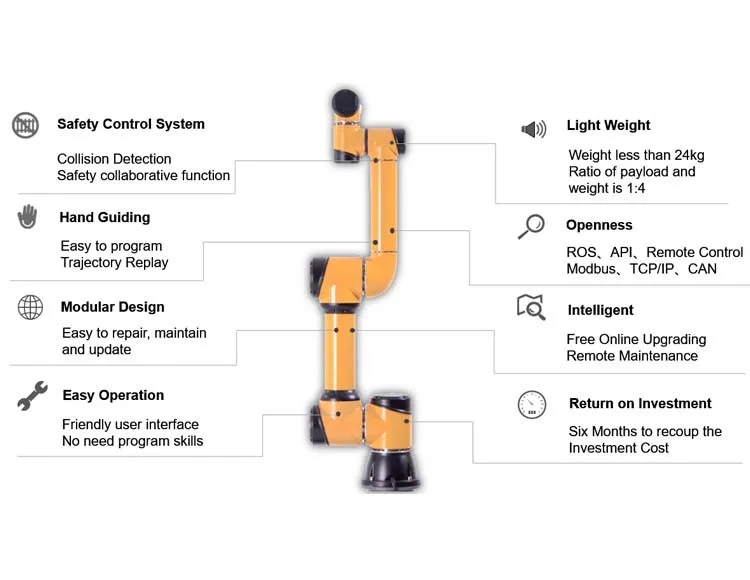

Six Axis Robot Arm

Certifications include

ISO 10218-1:2011

EN 60204-1:2006 + A1:2009

ISO 12100: 2010

ISO 13849-1:2008

Technical Specifications

Controlled Axed DoF	6 axes (J1, J2, J3, J4, J5, J6) J7max
Reach	924 mm
Working Range	880 mm
Payload	5kg
Weight	24kg
Footprint	172 mm diameter
Collabortative Operation	Safety monitored stop, speed and separation monitoring, hand guid operation, power and force limiting design.
Certifications	ISO 10218-1:2011, EN 60204-1:2006 +A1:2009 ISO 12100:2010, ISO 13849-1:2008, CE
Repeatability	±0.02mm
Linear Velocity	2.8 m/s adjustable
Power Consumption	200 watts typical application
Materials	Aluminum, Steel, Plastic
Ambient Humidity	Normal 75% RH or less without frost, or dew, 85% RH short term
Ambient Temperature	0 to 45 degrees Celsius
IP Classification of Robot	IP 54
Programing	Teach Pendant with user interface, guide to teach, ROS compatibility through an API, Lua, Python.
Communication	CAN Bus
Motor Type	Harmonic drive 48 Volt
Installation Orientation	Any celling, Floor, Wall

IP54 Six Axis Robot Arm , 200 Watts Aluminum Robot Arm Harmonic Drive

I/O Ports

i-Series

Digital in 24

Digital out 16

Analog In 3

Analog out 4

Power input 24 Volts

Power output 3A.

Teach Pendant

Dimensions (L*W*H): 355*235*54 mm

Weight: 1.8 Kg
Display Screen: 30 cm Touch LCD Screen
Cabling: 4.5 m
IP Classification: IP54

IP54 Six Axis Robot Arm , 200 Watts Aluminum Robot Arm Harmonic Drive
